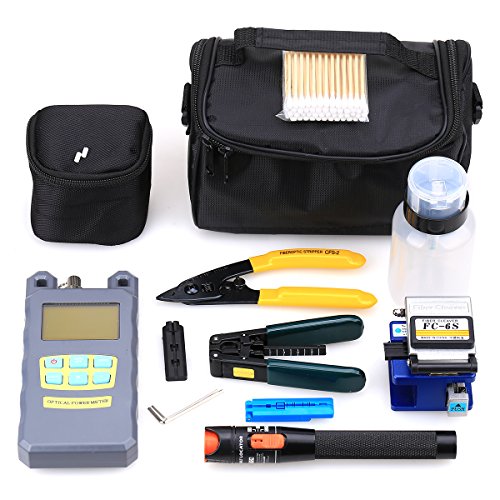

20 in 1 FTTH Cold Splice Fiber Tool Kit FC-6S Fiber Cleaver /Optical Power Meter 10km Visual Fault Locator Wire Stripper

Description

1.FC-6S Fiber Cleaver
Applicable fibers : singlemode/mulitmode use
Fiber Diameter: 125um
Coating Diameter:250um~900um
Typical Cleaver angle: 0.5 degrees
Cleaver length: 9-16mm(single fiber-0.25mm coating)/10-16mm(single fiber-0.9mm coating)
Blade life time : 36000 cleaves (3000 per blade position)
Cleaver dimensions: 63x65x63mm
Weight: 500g
2.Optical power Meter
Wavelength(nm) : 800nm to 1700nm
Detector: InGaAs
Measurement range: -50~+26
Connetor: SC,FC,ST/ Universal 2.5 mm Adaptor Caliberated Wavelength(nm): 850/1300/1310/1490/1550/1625
Resolution(dB): Linear 0.1% or Non-linear 0.01 dBm
Power supply: 3pcs AAA battery (not included) Battery Operating time : 240 h with 1.5V battery (3)
Working Hours: >120 hours (without backlight)
Size: 130x63x29mm
Weight: 160g
3.10mW Visual Fault Finder Output Power: >10mW
Wavelength: 650nm ± 20nm
Connector: 2.5mm Universal connector
2Hz glint or continuous output
Weight: 150g–Small size, easy to field test
4.Flat Drop Optic Cable Stripper

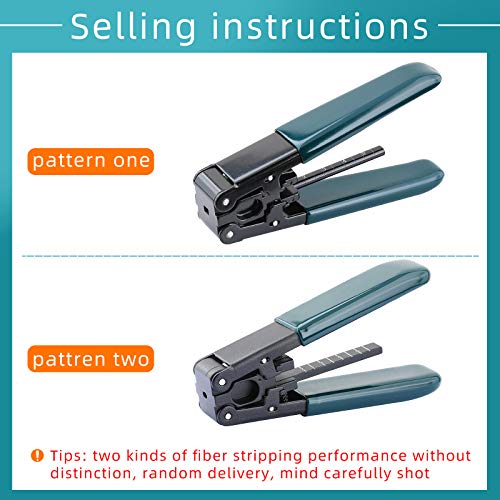

5.Fiber Optic Stripper
6.Tool Bag

Be sure this fits by entering your model number.
It is a multifunctional tool kit which provides the tools essential for the assembly of Mechanical Splices. It is going to bring you a higher working efficiency
This optical fiber cleaver is to be had with a single fiber adapter for 250 to 900 micron coated single fibers. This is a simple operation for the user to take away or install the single fiber adapter and alternate between mass and single fiber cleaving.
The Pen-Type Finder is specially designed for field team of workers who need an effective and economical tool for fiber tracing, fiber routing and continuity checking in an optical network all the way through and after installation. It includes: Finding the breakpoint, poor connections, bending or cracking in fiber optic cables. Finding the faults of OTDR
